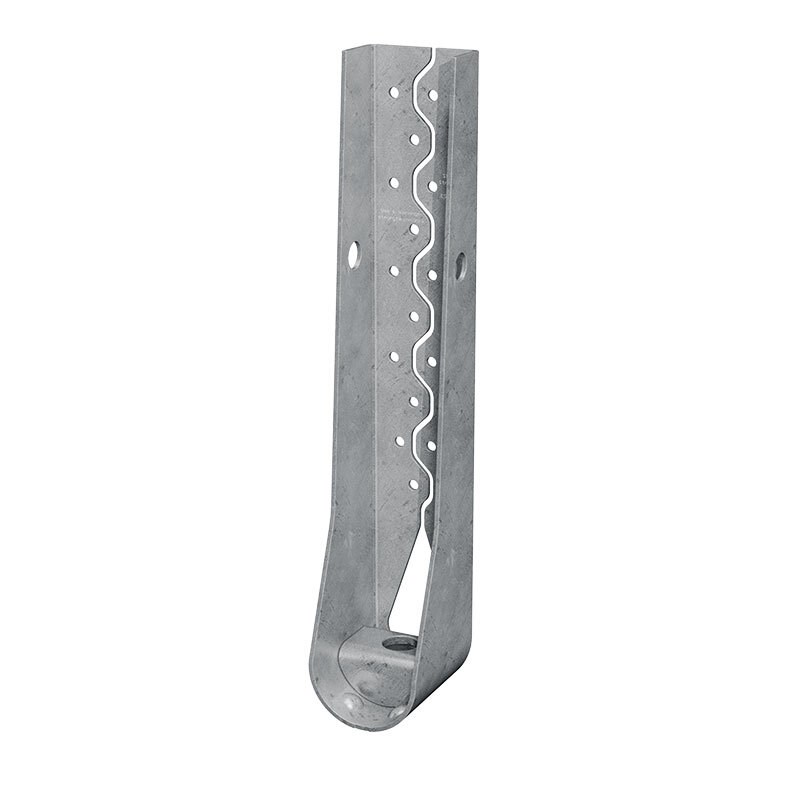

HDU9 Simpson Strong Tie S/HDU9 Heavy Duty Hold Down Bracket Z275 Galvanised

Simpson Strong Tie S/HDU9 Heavy Duty Hold Down Bracket Z275 Galvanised

The Simpson Strong-Tie SIMPSONSHDU9 Holdowns install easily, minimise fastener slip and provide a greater net section when compared to bolts. They are pre-deflected during the manufacturing process, virtually eliminating deflection under load due to material stretch. Galvanised finish ensures corrosion protection and long manufacture life.

• Galvanised finish provides corrosion resistance
• Uses Strong drive SDS heavy duty connector screws which install easily, reduce fastener slip and provide a greater net section area of the post compared to bolts
• Strong drive SDS heavy duty connector screws are supplied with the holdowns to ensure proper fasteners are used
• No stud bolts to countersink at openings
• Anchor bolt diameter: 20 mm

Specification:

The holdown design virtually eliminates deflection due to material stretch

Code: SIMPSONSHDU9

Brand: Simpson Strong-Tie

Product Type: Holdown

Width: 75 mm

Length: 90 mm

Height: 20 mm

Strap Thickness: 3.5 mm

Material: Steel

Finish: Galvanised
